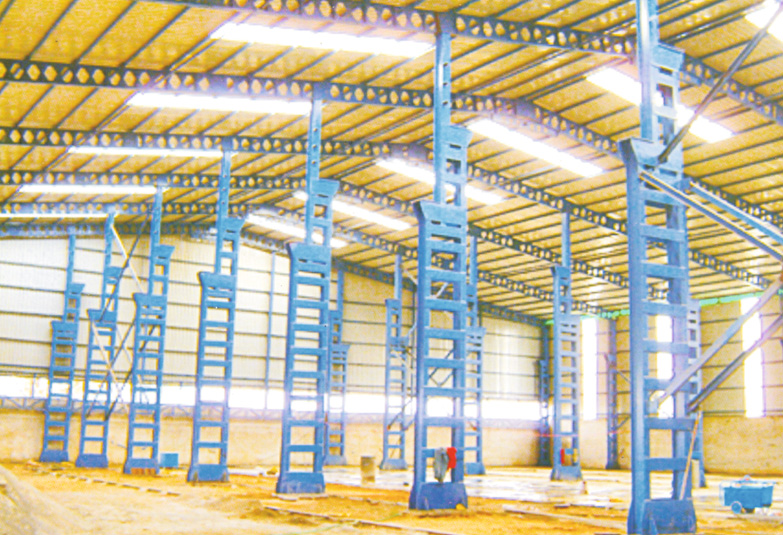

Components Of PEB’s Pre Engineering Buildings (PEB’s)

Technological improvement over the year has contributed immensely to the enhancement of quality of life through various new products and services. One such revolution was the pre engineered buildings. Through its origin can be traced back to 1960’s its potential has been felt only during the recent years. This was mainly due to the development in technology, which helped in computerizing the design and design.

Though initially only off the shelf products were available in these configurations aided by the technological development tailor made solutions are also made using this technology in very short durations. A recent survey by the Metal Building Associations (MBMA) shows that about 60% of the non residential low rises building in USA are pre engineered buildings.

Although PEB systems are extensively used in industrial and many other non residential constructions worldwide, it is relatively a new concept in India. These concepts were introduced to the Indian markets lately in the late 1990’s with the opening up of the economy and a number of multi nationals setting up their projects.
Pre-Engineered Buildings are most economical and fast construction units, which uses a pre- determined raw material that has been proved in the fullness of time to satisfy an extensive range of structural systems with creative designs.

Pre Engineered Steel Building is a Building Shell Employing Distinct Product Categories:

Custom beams and rafters for unique frames to accommodate the large openinhs/clear access for ease of operations, which include portal frames, high level mezzanines / 2nd floo, fascia, soffits and other applications.

Profile Sheets

C. J. ENTERPRISES offers a variety of profiles and coatings for its panels. The metal skins are used as roof and wall panels, interior roof and wall liners, partition panels, soffit panels, etc.

HI 1080 ROOF & WALL SHEET

This newely developed type “25 to 35/200 to 333” panel is superior structural panel, whose profile is designed to withstand heavy loads, such as roof snow loads and uplift loads resulting from high velocity winds. It is the standard C. J. ENTERPRISES roof panel.

The Type “25 to 35/200 to 333” steel panel conforms to ASTM A792M Grade 3458 / Normal grade (245mpm / 250mpm MILD STEEL) or equivalent and is coated with a protective layer of Prepainted Galvanized Steel, Bare/ Prepainted Galvalume, Bare / Prepainted Aluminium which is 45 & zinc and 55 % aluminium alloy coating. Type “30 to 35/200 to 333” steel panels are available various thicknesses from: 0.3- 0.8 mm and in all standard colors.

APPLICATION: Roof and Wall for all Industrial / Non-Industrial Building.

Technical Specifications of Aluminium Zinc Alloy Coated Steel
No. Parameter Description
1 Steel Specification Bare Galvalume Steel (GL)
2 Combination 55% Aluminium, 43.4% Zinc & 1.6% Si.
3 Tensile Strength 240 to 550 MPA
4 Coating Std. AS 1397-1993.
5 Material Bare Galvalume ASTM A 792M
6 Coating Mass AZ 150.
7 Base Metal High Tensile Steel
8 Painting Thickness (Top & Bottom) Bare AZ 150 Both side
9 Profile Specifications 25/32 and 200/255 & 300/333
10 Supply Width 1060mm to 1080mm
11 Cover Width 1000mm
12 Total Coated Thickness (TCT) 0.40 to 0.80
13 Thickness Tolerance As per ISI
Technical Specifications of Pre-Painted Galvanized Steel (PPG)
No. Parameter Description
1 Steel Specification Pre Painted Galvanized Steel (PPGI)
2 Substrate IS : 513 Cold Rolled Steel Coils.
3 Tensile Strength 240 MPA
4 Galvanizing IS : 277 / JS : 3302
5 Zinc Coating Pure Lead Free Zinc120GSM (both side).
6 Pre-Painting IS: 14246 / JIS:3312
7 Type of Coating RMP
8 Painting Thickness (Top & Bottom) Top: 18-20, Bottom: 5-7 Microns
9 Profile Specifications 25/32 and 200/255 & 300/333
10 Supply Width 1060mm to 1080mm
11 Cover Width 1000mm
12 Total Coated Thickness (TCT) 0.40 to 0.80
13 Thickness Tolerance As per ISI

Roof & Wall Cladding Roofing Sheet & Color Ranges

Roof & Wall Cladding Accessories

Ridge Panel
Drip Flashing
Glable Flashing
Sky Lights
Gutter
Conner Flashing
Curve Sheet

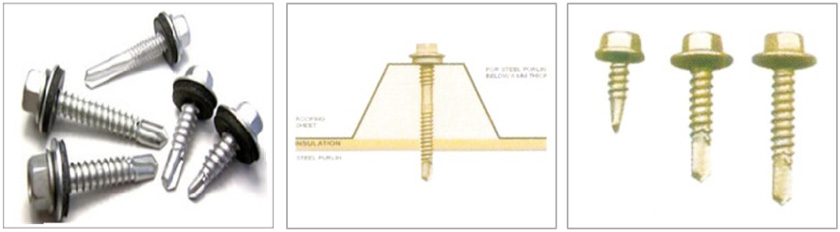

Roofing & Accessories Fasteners

Selection charts for metal roof & wall cladding application crest fixing, (profiled sheets)

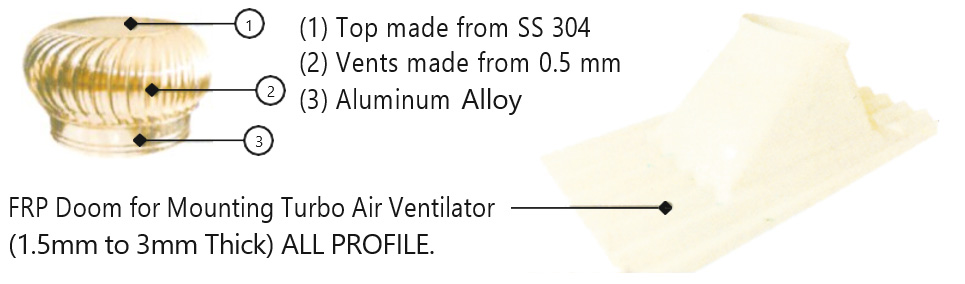

Turbo Air Ventilator Fan Manufacture

Graphical Details of Turbo Air Ventilator System:

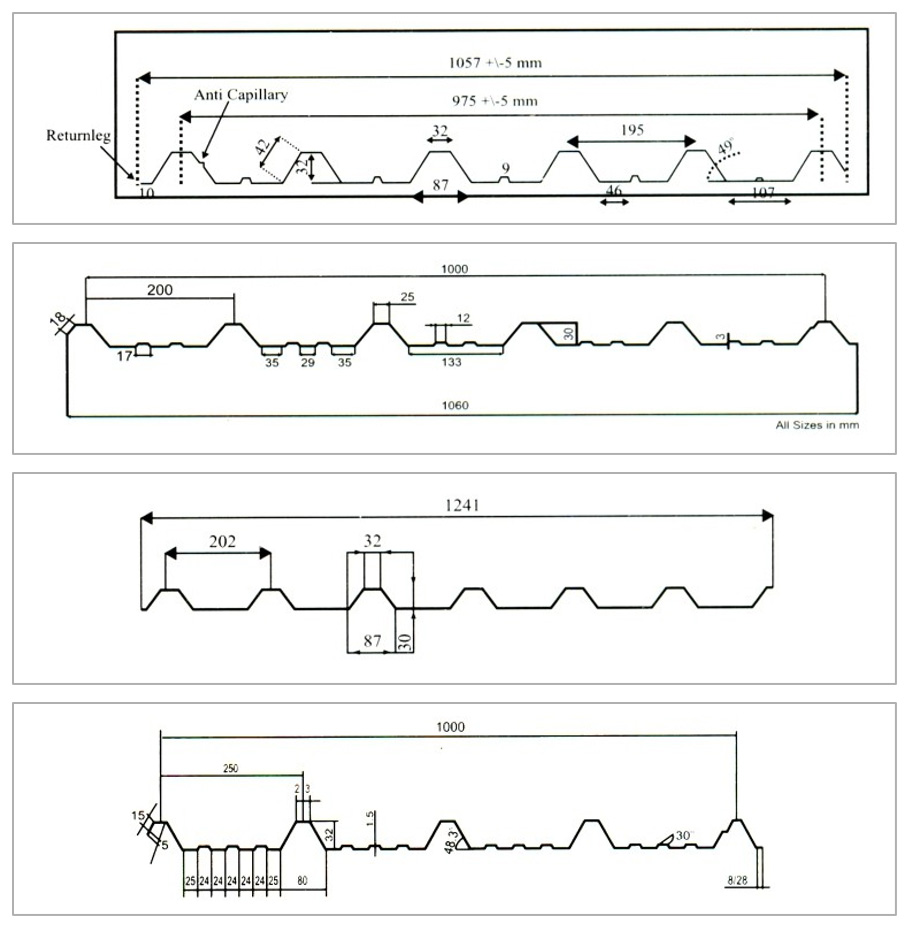

Roofing Sheet Profile Drawing

Roof Profile: Bare Galvalume, Color Coated Galvalume Two stiffening ribs and Anit Capiliary Flueh
Effective Width: 1060mm
Rib Height: 32mm
Cover Width: 1000mm
Thickness: 0.45mm to 0.7mm

NOTE: ANY ONE OF THIS WILL BE PROVIDED ACCORDING TO OUR AVAILABILITY.

Profile Diagram

Profile Type 32 – 195 (Supply Width – 1057 mm)

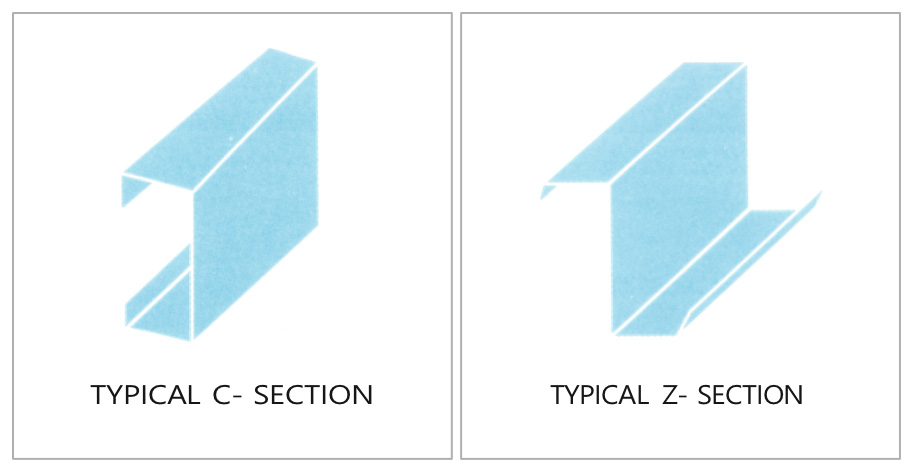

Roof Purlins

These are cold formed Z profiles generally 150mm to 300mm deep made from 1.5mm to 3.0mm thick 245mpa / 345mpa strength steel.

Specification
Standard Material Surface Finish Material Grade Purlins/Girts
Z-Sections 1.2 to 3mm Thk.
Red Oxide/Grey Oxide (Primer) or Bare IS2062/10748 Gr2 Equivalent IS 5986/Fe510 OR Z120, Z140
Pre-Galvanized ASTM A653 Grade SS37/50 Cl l OR Equivalent Z170, Z200, Z230, Z250, Z300
